MCP Setup

Connect MemoryGate to your AI client using the Model Context Protocol (MCP).

Jump to: Claude Desktop Claude CLI ChatGPT Codex CLI First-Time Setup

Overview

MemoryGate works as an MCP server that your AI client connects to. Once connected, your agent can store and retrieve memories using standardized MCP tools.

Connection Requirements:

MemoryGate MCP Server URL: https://api.memorygate.ai/mcp
A MemoryGate account (sign up at dashboard.memorygate.ai)
Network access to api.memorygate.ai

Quick Reference

Client	Config Method	Auth
Claude Web/Desktop	Settings UI	OAuth (browser)
Claude CLI	JSON config	API Key
ChatGPT (Dev Mode)	Settings UI	OAuth (browser)
Codex CLI	JSON config	API Key

API Key Security: Never commit API keys to version control. Use environment variables or secure secret management for shared projects. You can revoke and regenerate keys anytime in the dashboard.

Claude Web / Desktop

Step 1: Open Connectors Settings

Open Claude Desktop (or claude.ai) and go to Settings → Connectors.

Scroll down and click Add custom connector.

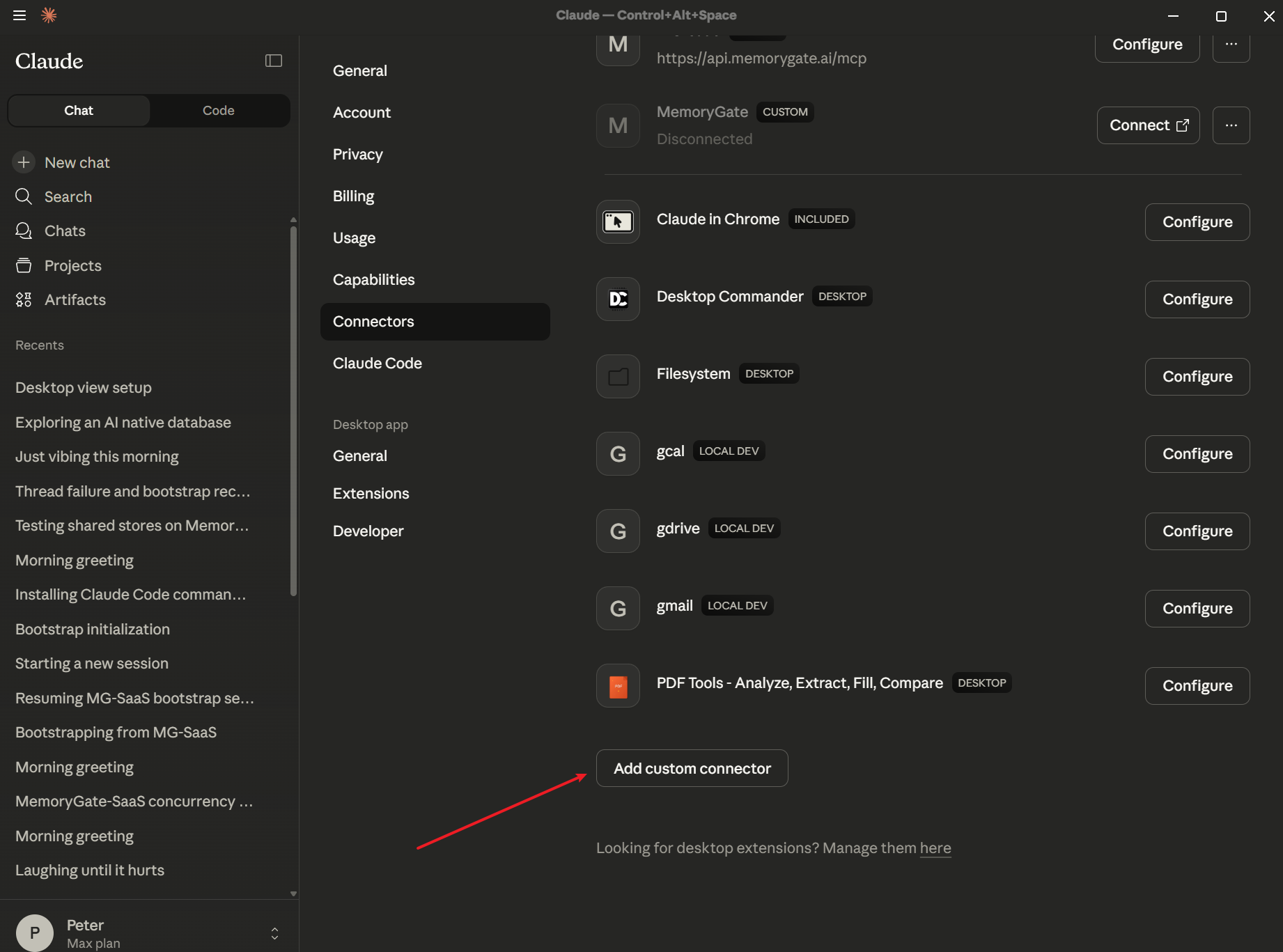

Claude Desktop Settings - Connectors panel showing Add custom connector button

Step 2: Configure the Connector

In the "Add custom connector" dialog, enter:

Name: MemoryGate
URL: https://api.memorygate.ai/mcp/

Expand Advanced settings and enter your MemoryGate account email address.

Click Add to save.

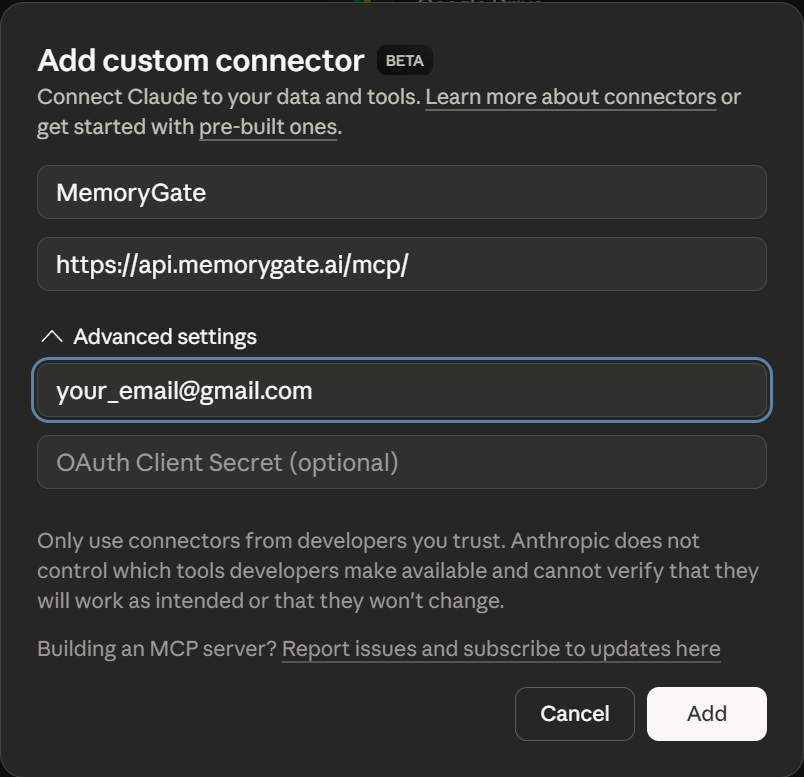

Add custom connector dialog with MemoryGate configuration

Step 3: Authorize Access

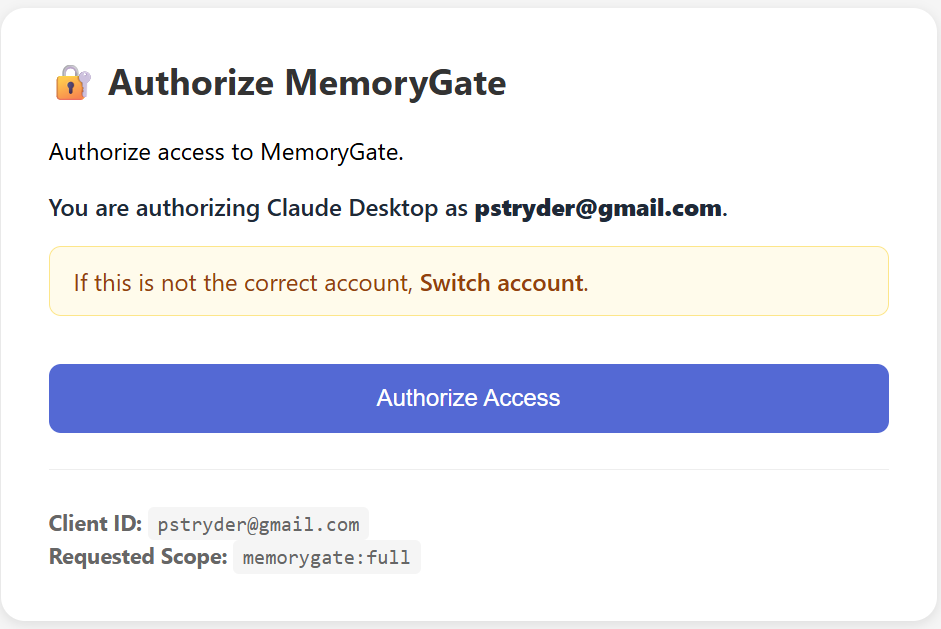

A browser window will open asking you to authorize Claude Desktop to access MemoryGate.

Verify the email and click Authorize Access.

Step 4: Configure Permissions

Return to Claude. Your connector will appear in the list with a CUSTOM badge.

Click Configure to open the permissions panel.

Connectors list showing MemoryGate with Configure button

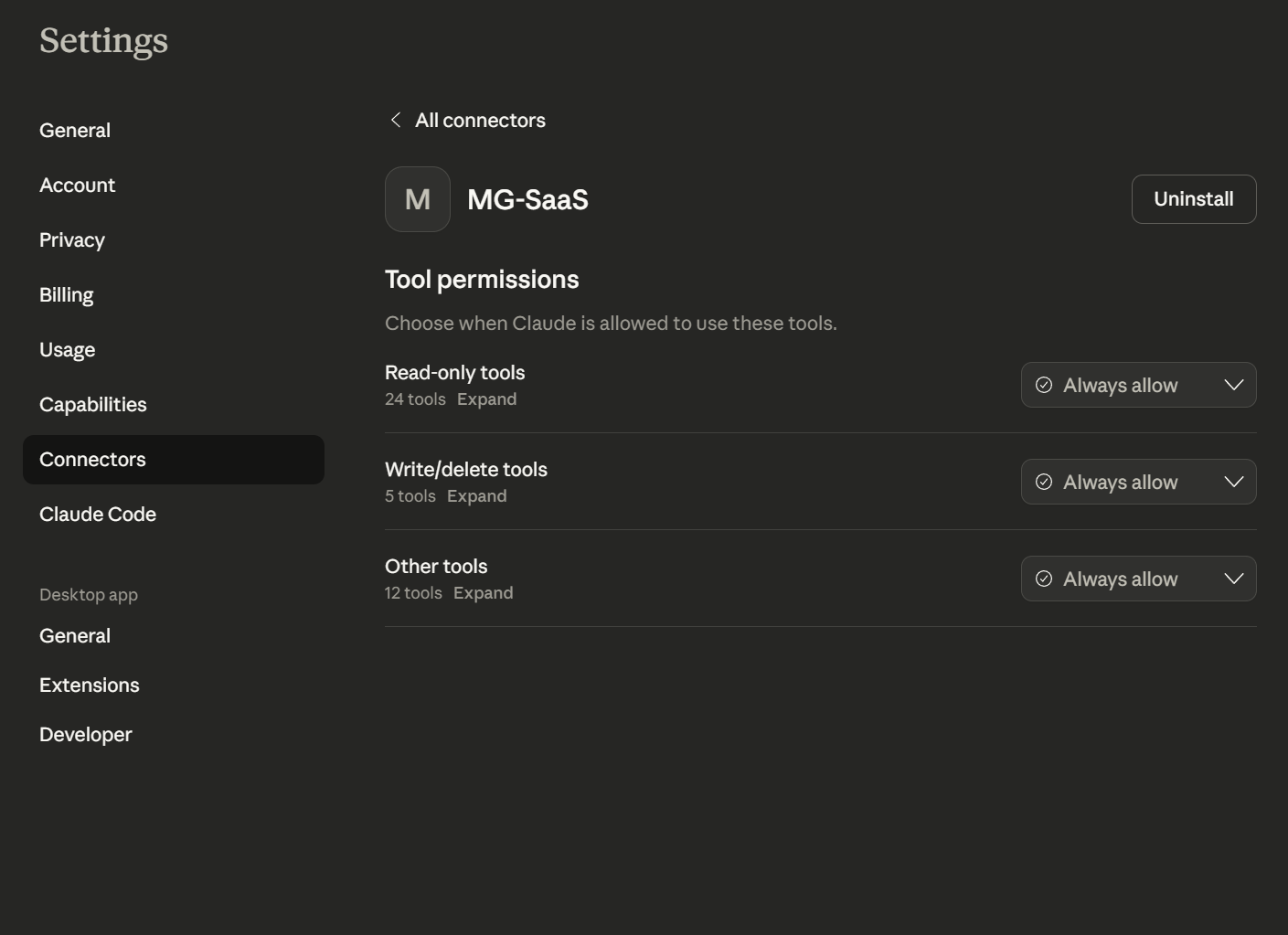

Step 5: Set Tool Permissions

Configure when Claude can use MemoryGate tools:

Read-only tools (24 tools) - searching and retrieving memories
Write/delete tools (5 tools) - storing and managing memories
Other tools (12 tools) - bootstrap, chains, relationships

For seamless operation, set all categories to Always allow.

Note: Claude Web (claude.ai) and Claude Desktop share the same connector configuration. Your connected servers sync across both interfaces.

Claude CLI (Claude Code)

Step 1: Generate an API Key

Go to dashboard.memorygate.ai and sign in.

Navigate to API Keys and click Generate New Key.

Copy the key immediately - it won't be shown again.

Step 2: Configure Claude CLI

Edit your Claude CLI settings file:

Windows: %USERPROFILE%\.claude\settings.json
macOS/Linux: ~/.claude/settings.json

Add MemoryGate to the mcpServers section:

{
  "mcpServers": {
    "memorygate": {
      "type": "url",
      "url": "https://api.memorygate.ai/mcp",
      "headers": {
        "Authorization": "Bearer YOUR_API_KEY_HERE"
      }
    }
  }
}

Replace YOUR_API_KEY_HERE with your actual API key.

Using environment variables (recommended):

{
  "mcpServers": {
    "memorygate": {
      "type": "url",
      "url": "https://api.memorygate.ai/mcp",
      "headers": {
        "Authorization": "Bearer ${MEMORYGATE_API_KEY}"
      }
    }
  }
}

Then set MEMORYGATE_API_KEY in your shell profile or environment.

Step 3 (Recommended): Add Bootstrap Instructions

Create or edit CLAUDE.md in your project root (or ~/.claude/CLAUDE.md globally) to auto-bootstrap:

# MemoryGate Bootstrap

When MemoryGate MCP is available, call `memory_bootstrap` at conversation start with:
- ai_name: "Claude Code"
- ai_platform: "Claude CLI"

This ensures persistent identity and proper memory attribution.

ChatGPT Web (Dev Mode)

Step 1: Open Apps Settings

Go to chatgpt.com and sign in.

Click your profile icon → Settings, then select Apps from the sidebar.

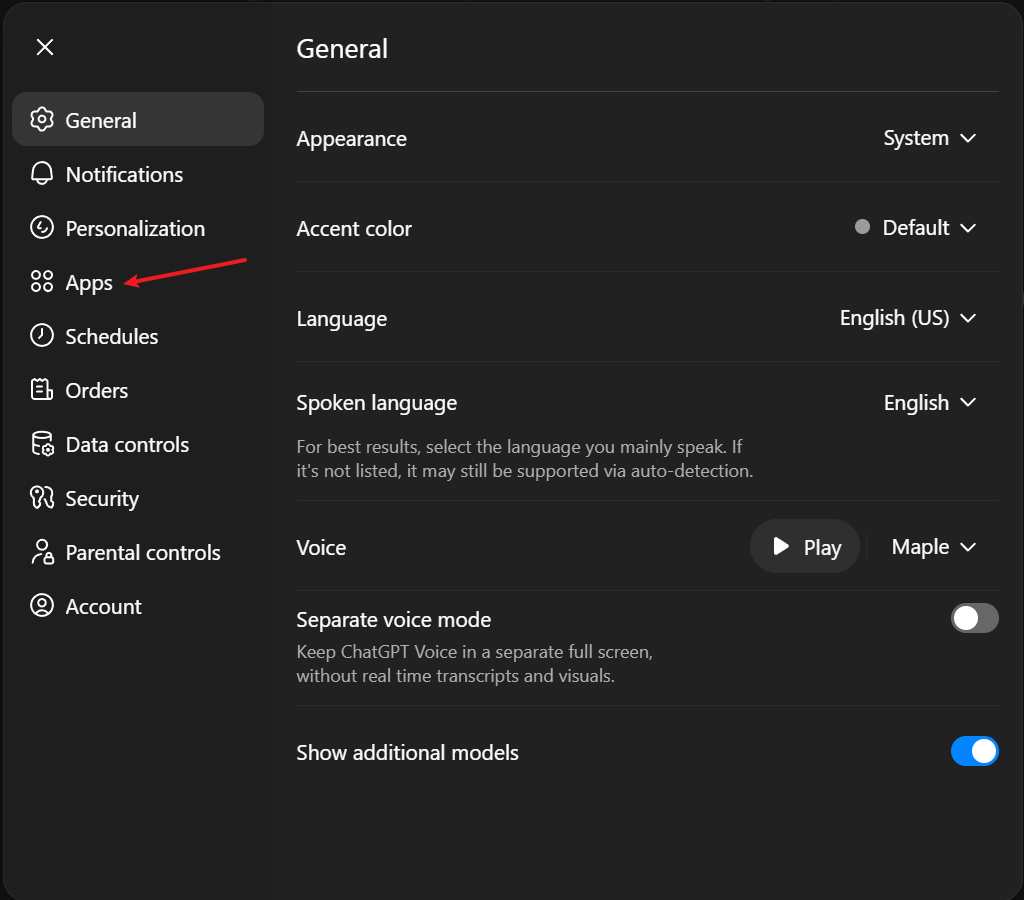

ChatGPT Settings with Apps menu highlighted

Step 2: Open Advanced Settings

In the Apps panel, scroll down and click Advanced settings.

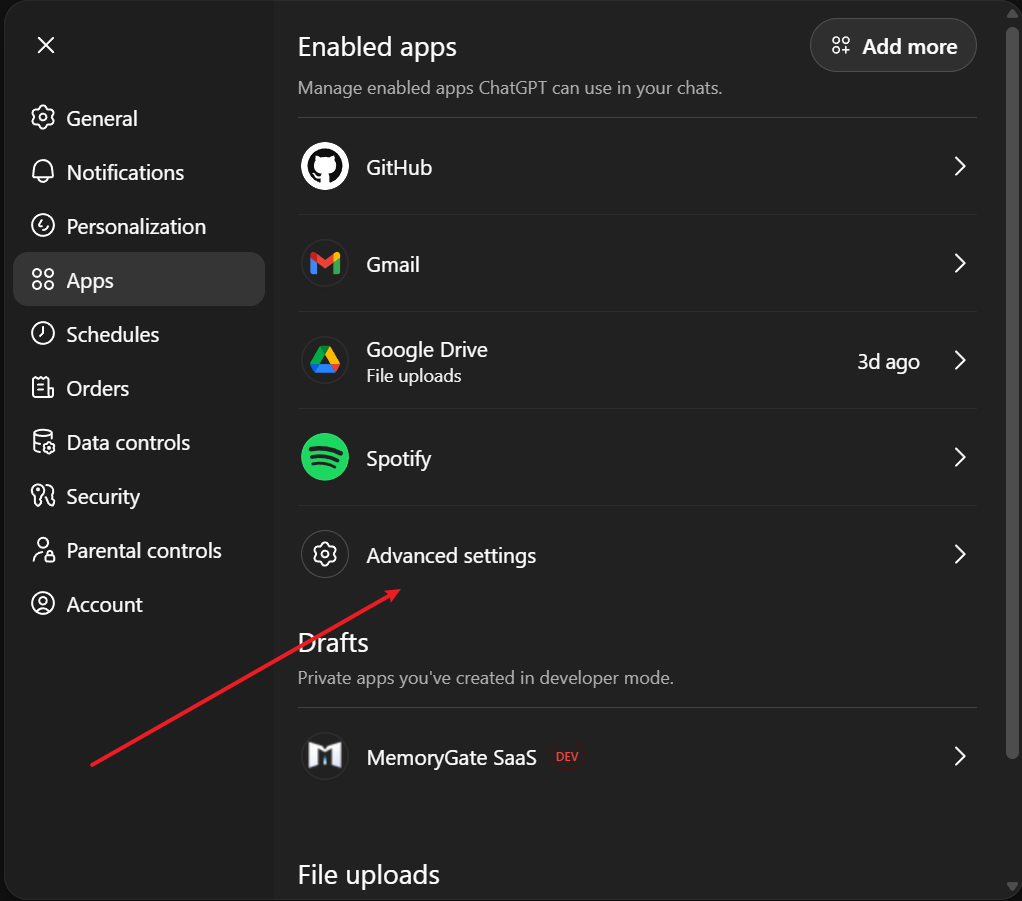

ChatGPT Apps panel showing Advanced settings option

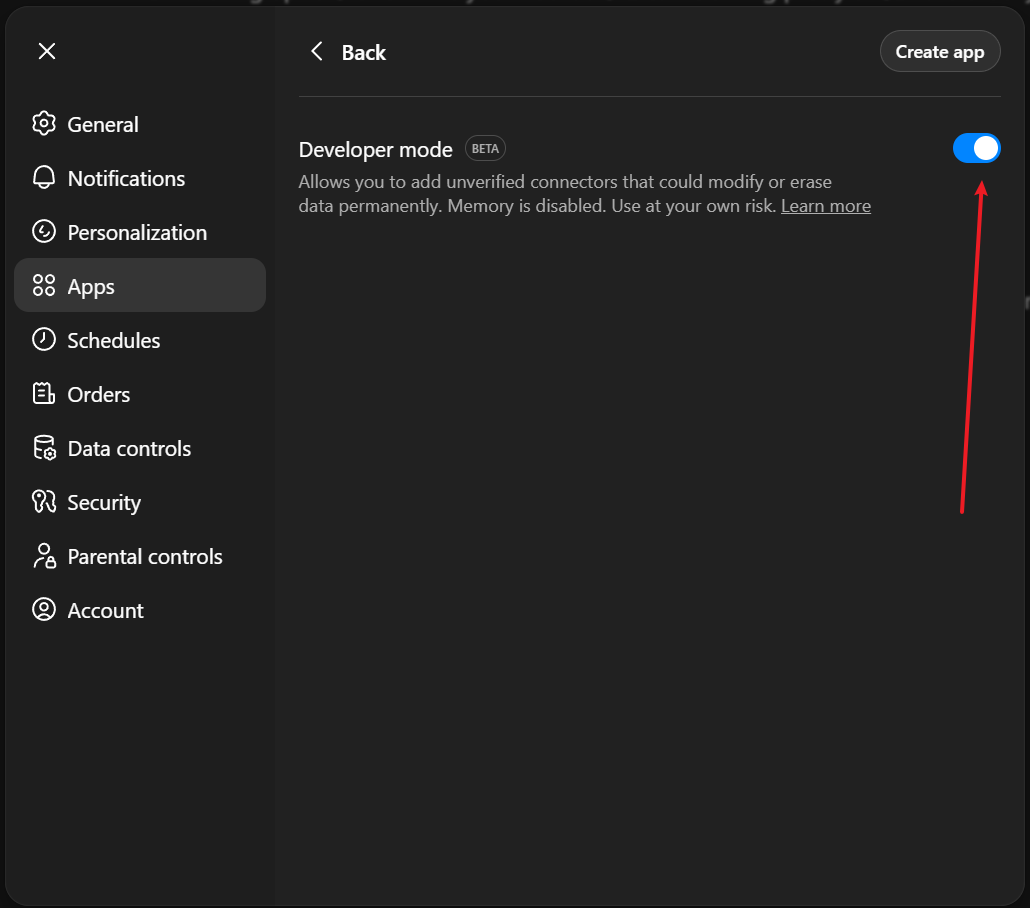

Step 3: Enable Developer Mode

Toggle on Developer mode (marked as BETA).

This allows you to add custom MCP servers like MemoryGate.

Step 4: Create New App

Click Create app (top right) to open the New App form.

Fill in the following:

Name: MemoryGate
MCP Server URL: https://api.memorygate.ai/mcp/
Authentication: Select OAuth
Email: Your MemoryGate account email

Check the box to acknowledge the custom MCP server warning, then click Create.

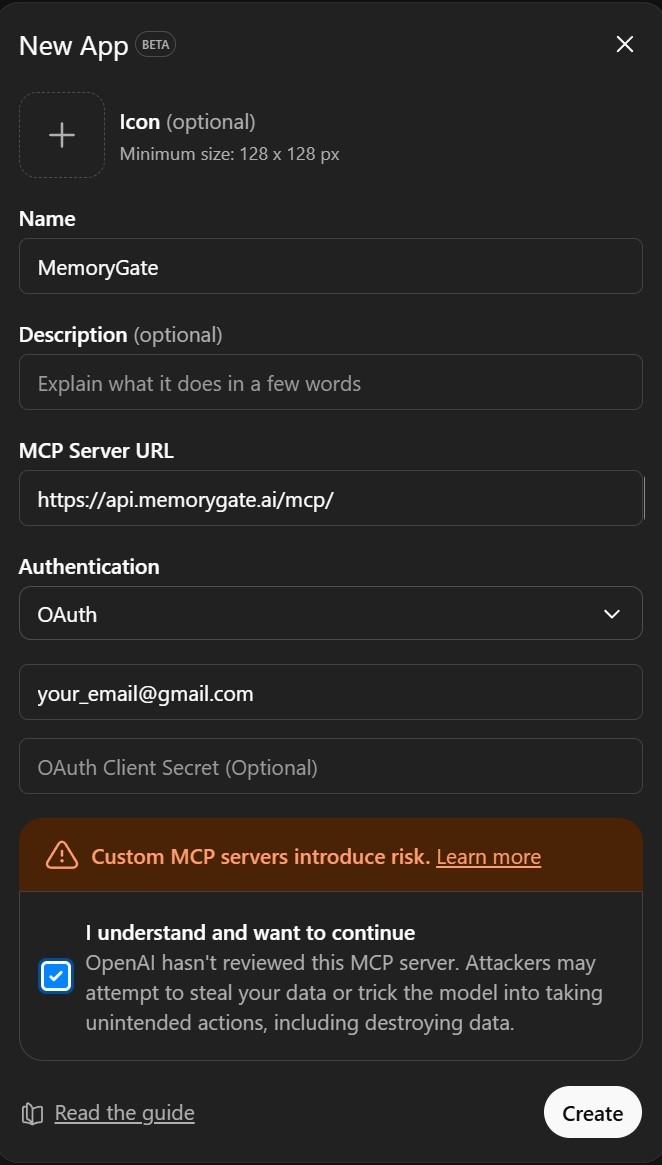

New App form with MemoryGate configuration

Step 5: Connect the App

After creating the app, you'll see its details page showing the URL and available actions.

Click the Connect button to initiate the OAuth flow.

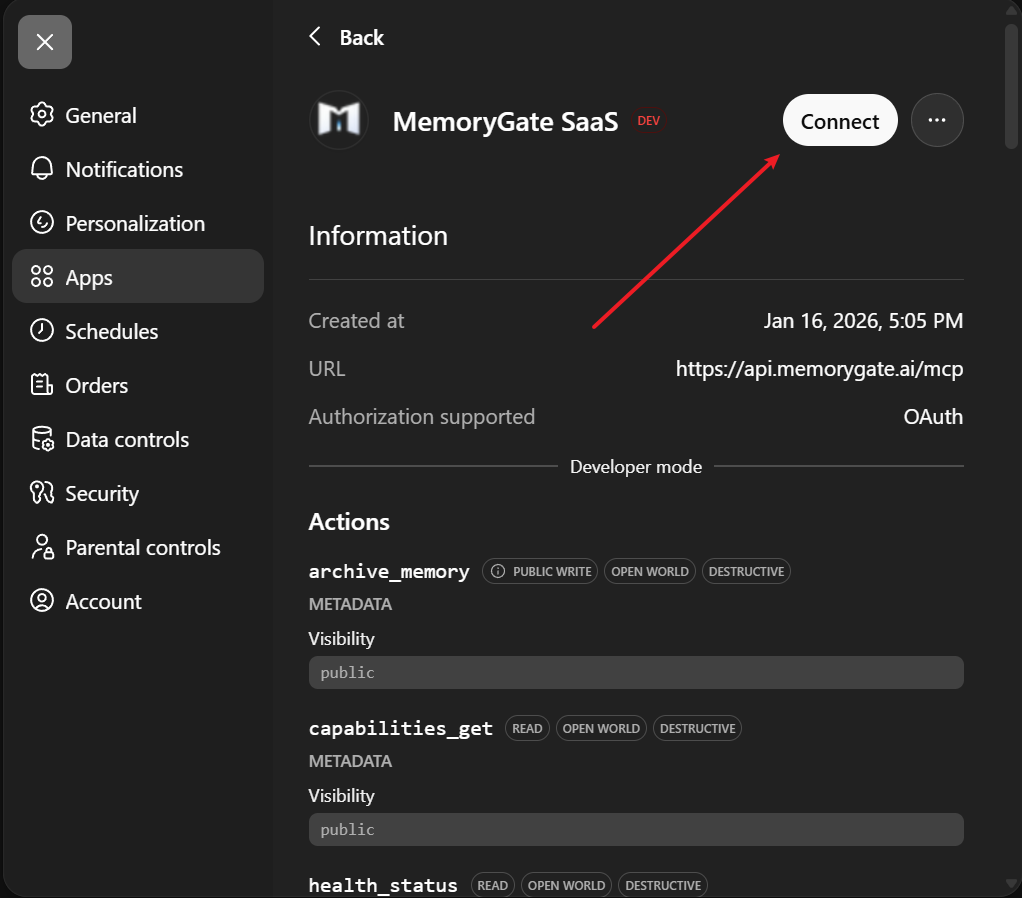

MemoryGate app details page with Connect button

Step 6: Authorize Access

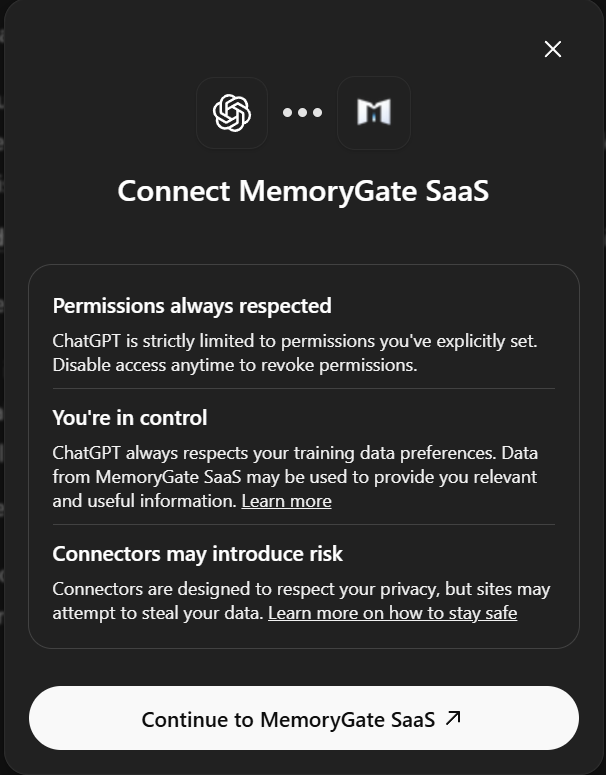

A dialog will appear explaining the connection. Click Continue to MemoryGate SaaS.

Complete the OAuth authorization in the browser popup that opens.

Step 7: Verify Connection

Once connected, you'll see the app status change to Connected with a Disconnect button.

The Information section confirms the OAuth authorization is active.

Start a new chat and verify MemoryGate tools are available.

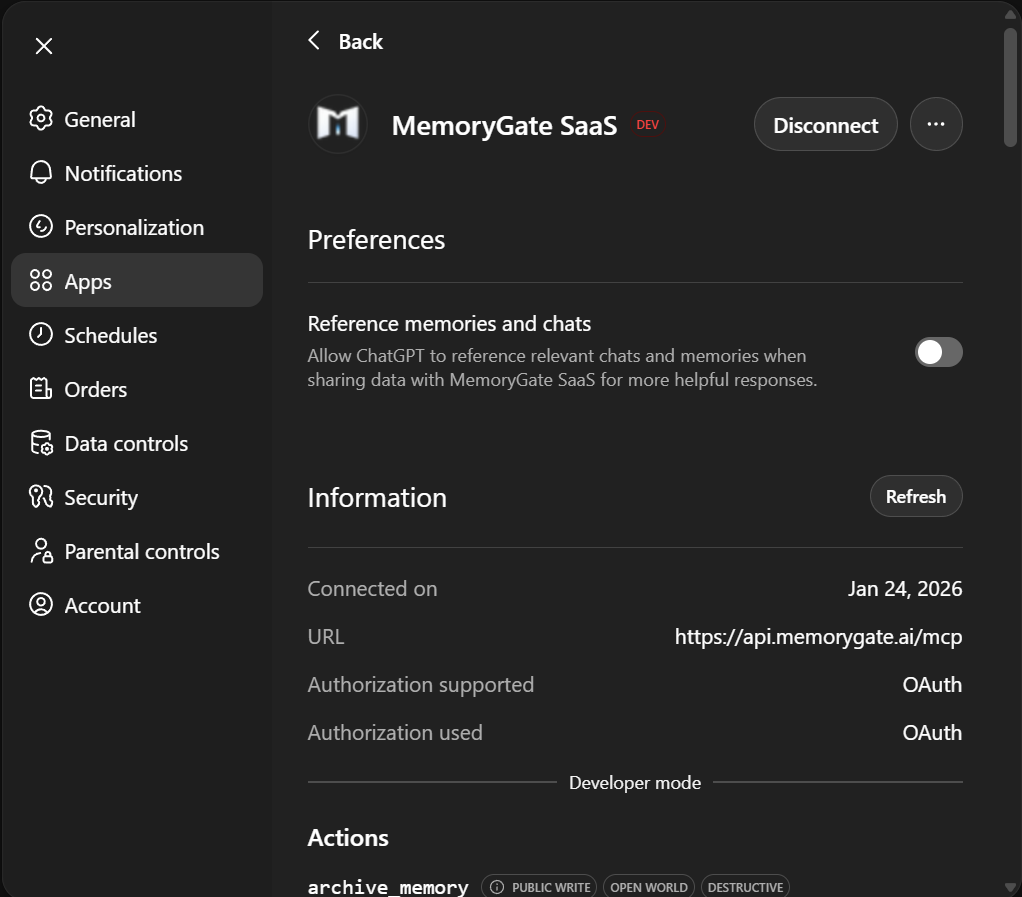

MemoryGate connected state showing preferences and connection info

Beta Feature: ChatGPT's MCP support is in developer preview. You must enable Developer mode to add custom MCP servers. The "Reference memories and chats" preference is optional.

Codex CLI

Step 1: Generate an API Key

Go to dashboard.memorygate.ai and sign in.

Navigate to API Keys and click Generate New Key.

Copy the key immediately - it won't be shown again.

Step 2: Configure Codex CLI

Edit your Codex configuration file:

Windows: %USERPROFILE%\.codex\config.json
macOS/Linux: ~/.codex/config.json

Add MemoryGate to the mcpServers section:

{
  "mcpServers": {
    "memorygate": {
      "type": "url",
      "url": "https://api.memorygate.ai/mcp",
      "headers": {
        "Authorization": "Bearer YOUR_API_KEY_HERE"
      }
    }
  }
}

Replace YOUR_API_KEY_HERE with your actual API key.

Using environment variables (recommended):

{
  "mcpServers": {
    "memorygate": {
      "type": "url",
      "url": "https://api.memorygate.ai/mcp",
      "headers": {
        "Authorization": "Bearer ${MEMORYGATE_API_KEY}"
      }
    }
  }
}

Tip: Add bootstrap instructions to your project's AGENTS.md or equivalent config to ensure Codex properly initializes MemoryGate sessions.

Custom MCP Clients

Implementing Your Own Client

If you're building a custom MCP client, you'll need to:

Implement the MCP protocol (SSE-based transport)
Handle OAuth 2.0 + PKCE authentication flow
Connect to the MemoryGate MCP server
Call MCP tools using the standard format

Server Endpoint: https://api.memorygate.ai/mcp

OAuth Discovery: https://api.memorygate.ai/.well-known/oauth-authorization-server

Transport: Server-Sent Events (SSE) for server-to-client streaming

First-Time Agent Setup

After connecting MemoryGate, your AI agent needs to complete a one-time setup to establish persistent identity. This ensures memories are properly attributed across sessions.

Step 1: Bootstrap Identity

Tell your agent: "Initialize MemoryGate and bootstrap your identity"

The agent should call memory_bootstrap() with:

ai_name: A name for this agent (e.g., "Claude Code", "ChatGPT")
ai_platform: The platform (e.g., "Claude CLI", "ChatGPT Web")

The response includes an agent_uuid - a persistent identifier for this agent instance.

Step 2: Save the Agent UUID

The agent_uuid returned from bootstrap must be saved for future sessions.

For CLI tools (Claude Code, Codex): Add bootstrap instructions to your config file:

# In CLAUDE.md or AGENTS.md
When MemoryGate MCP is available, call memory_bootstrap at conversation start:
- agent_uuid: "ag_XXXXXXXXXXXX"  # Your UUID from step 1
- ai_name: "Claude Code"
- ai_platform: "Claude CLI"

For web interfaces: Save the UUID and include it when prompting your agent to initialize MemoryGate at the start of new conversations.

Step 3: Read the User Guide

Tell your agent: "Read the MemoryGate user guide"

The agent should call memory_user_guide() which returns:

Complete tool documentation
Memory type schemas (observations, patterns, concepts, documents)
Relationship vocabulary and conventions
Best practices for memory operations

This self-documentation helps the agent understand how to use MemoryGate effectively.

Step 4: Create an Anchor Chain

Tell your agent: "Create your anchor chain with your identity and operating conventions"

An anchor chain stores the agent's persistent configuration:

Constitution: Identity, ref formats, domain taxonomy
Verb list: Relationship vocabulary (validates, informs, supersedes, etc.)
Playbook: Operational protocol and behavioral guidelines

The agent calls memory_chain_create() with chain_type: "agent_profile", then appends entries using memory_chain_append().

Finally, call agent_anchor_set() to register the chain as this agent's anchor.

Ongoing Sessions: After initial setup, agents should call memory_bootstrap() with the saved agent_uuid at the start of each conversation, then load their anchor chain with memory_chain_get() to restore their identity and conventions.

Quick Verification

Test that everything is working:

Storage Test: Tell your agent: "Remember that I'm testing the connection"

Expected: Confirmation that an observation was stored.

Retrieval Test: In a new conversation (after bootstrap), ask: "What do you remember about me testing?"

Expected: The agent recalls the test observation from memory.

Troubleshooting

Connection Fails

Symptoms: Agent says it can't connect to MemoryGate, or MCP tools are unavailable.

Solutions:

Verify the server URL is exactly: https://api.memorygate.ai/mcp
Ensure your client has network access to api.memorygate.ai
Try disconnecting and reconnecting the MCP server
Check that OAuth authorization completed successfully
CLI tools: Verify your JSON config syntax is valid (use a JSON validator)
CLI tools: Check the config file location matches your OS (see setup sections above)

OAuth Authorization Failed

Symptoms: OAuth flow doesn't complete, or you get authentication errors.

Solutions:

Clear your browser cookies and try again
Ensure you're signed in to your MemoryGate account
Try using an incognito/private browser window
Check that your account is active at dashboard.memorygate.ai

Tools Not Appearing

Symptoms: Agent doesn't have access to MemoryGate tools.

Solutions:

Restart your AI client after adding the MCP server
Verify the connection status in your client's MCP settings
Check that no firewall is blocking api.memorygate.ai

Memories Not Persisting

Symptoms: Agent stores memories but can't retrieve them later.

Solutions:

Ensure memory_init_session() is being called at conversation start
Check that observations have sufficient confidence scores (≥ 0.5)
Verify your account has available storage quota

Still having issues? Check the GitHub issues or contact support.

Security Considerations

OAuth Flow: MemoryGate uses OAuth 2.0 + PKCE for secure authentication. Your identity is established through the OAuth flow, ensuring secure access to your memories.

Data Privacy: Your memories are private to your account. MemoryGate employees cannot access your stored data without explicit authorization.

API Keys: For programmatic access, you can generate API keys in the dashboard. Treat these like passwords—never commit them to version control.

Next Steps

Once connected, learn about:

Core Concepts - Understanding how memory works
API Reference - All available tools and endpoints
Examples - Common usage patterns
